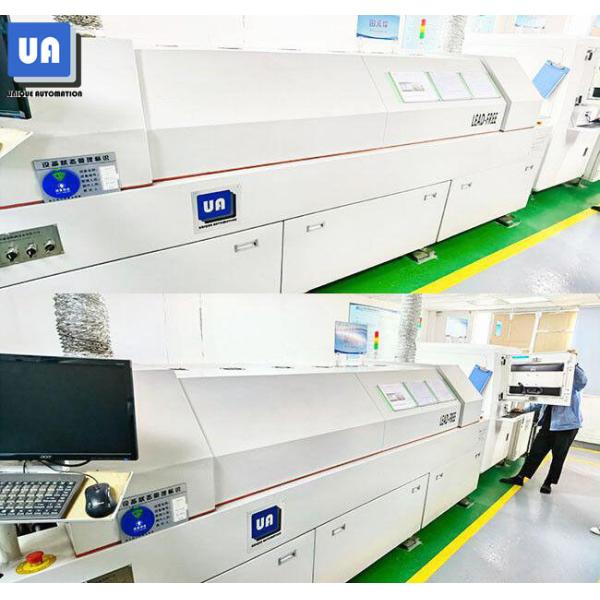

SMT Lead Free SMT Machine 5 Zones Reflow Oven
Features
1. All temperature zone applies coercive independent cycles PID controls and up & down heating style,
which make the temperature of theoven accurate with a large heat capacity.
2. Even temperature and high heat compensation efficiency,
especially suitable for soldering of BGA CSP components.
3. Automatically monitoring and displaying the working condition of the oven the parameter
of the oven can be modified at any moment
4. The patent wind wheel design can ensure wind speed windspeed can be adjusted by frequency conversion
5. Quick warm up, it takes less than 20 minutes to heat fromthe normal temperature to the working temperature.
6. Powerful programming software’s controlling system, it can detect the online temperature
of PCB and can analysis save and print the profiles.
7. The upper cover of the oven is raised by electric handspike, safe and credible.
8. The guide rail is made of special aluminum alloy with high rigidity accuracy and intensity,
with auto chain lubricating system
9. SMEMA compatible
Specifications
| Model | RF-500I |
| No. of Heating Zones | Top 5 & Bottom 5 |
| No. of Cooling Zones | 1 |
| Length of Heating Zones | 2250 MM |
| Temp. Setting Range | Rome Temperature ~320C |
| Temperature Control Precision | ± 1C |
| Temperature Deviation on PCB | ± 1.5C |
| Nozzle Plate | Stainless Steel Plate |
| Cooling Method | Air Oven : Forced Air;
Nitrogen Oven : Water Chiller |
| Components Clearance | Top / Bottom Clearance of PCB is 25mm |
| Max. Width of PCB | 50 ~ 400 MM |
| Conveyor Height | 900± 20 MM |
| PCB Conveyor Method | Mesh and Rails |
| Conveyor Direction | Option |
| Convryor Speed | 20-2000MM/min |
| Mesh Width | 450 MM |
| Power Supply | 380V 50HZ / 220V 60HZ |
| Startup Power | Approx. 24KW |
| Normal Operation Power | About 3KW |
| Dimension ( L*W*H ) | 4150*1300*1450 |
| Weight | 1350KG |
Company Picture
Package and Shippment
Package : vacuum packing and wooden packing.
Shippment :
1. By air.
2. By sea.
3. By truck.
4. Other method as you like.
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.
OEM & ODM service are available.
Q2 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before delivery.
Q3:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange the free training for you.
Q4 : What is your delivery date?
The delivery date is about 20-30 working days after receive the payment.
Q5: What is your payment terms?
T/T, L/C, etc
